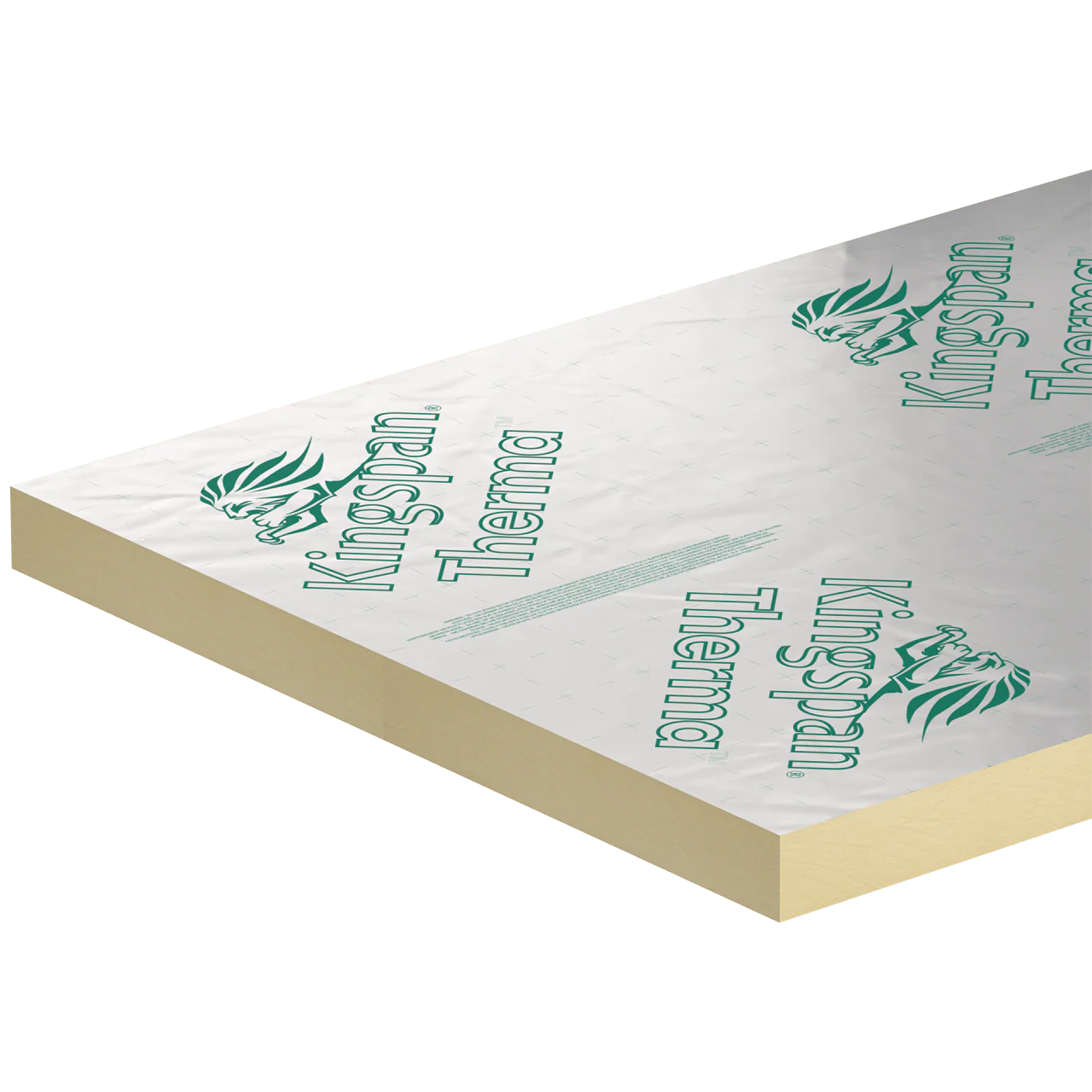

100mm Kingspan TP10 ThermaPitch PIR Insulation Board 2.4m x 1.2m

100mm Kingspan Thermapitch® TP10 is a workhorse thickness for new build and re-roofing, strong on its own and a natural base layer for between-and-over rafter builds. Its 4.50 m²K/W thermal resistance, from a 0.022 W/mK rigid PIR core, reaches low roof U-values, and where more is needed it takes a second layer over the rafters. Low emissivity foil faces both sides, and each sheet covers 2.88m². A round-number thickness for demanding roof specifications.

Benefits

• 4.50 m²K/W thermal resistance

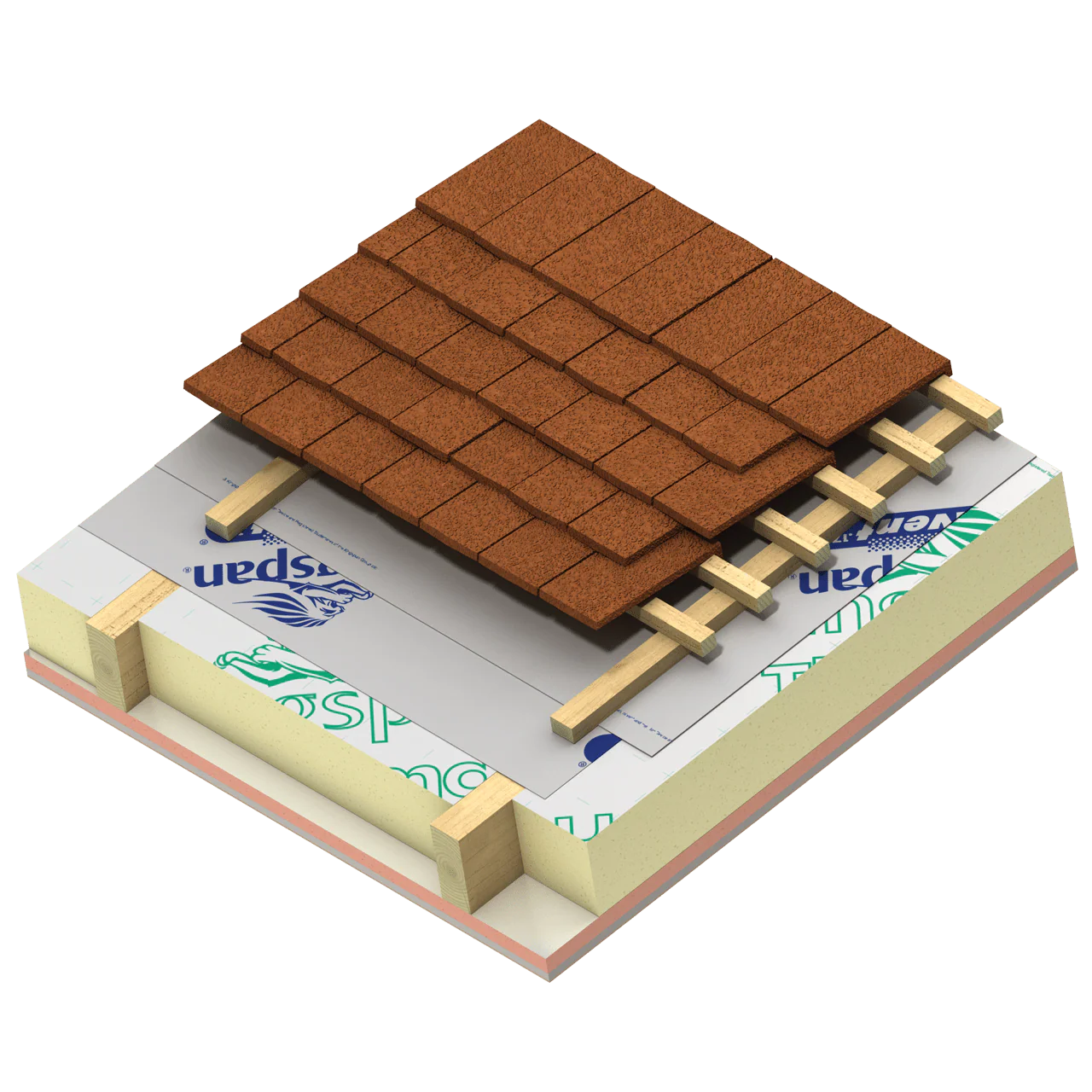

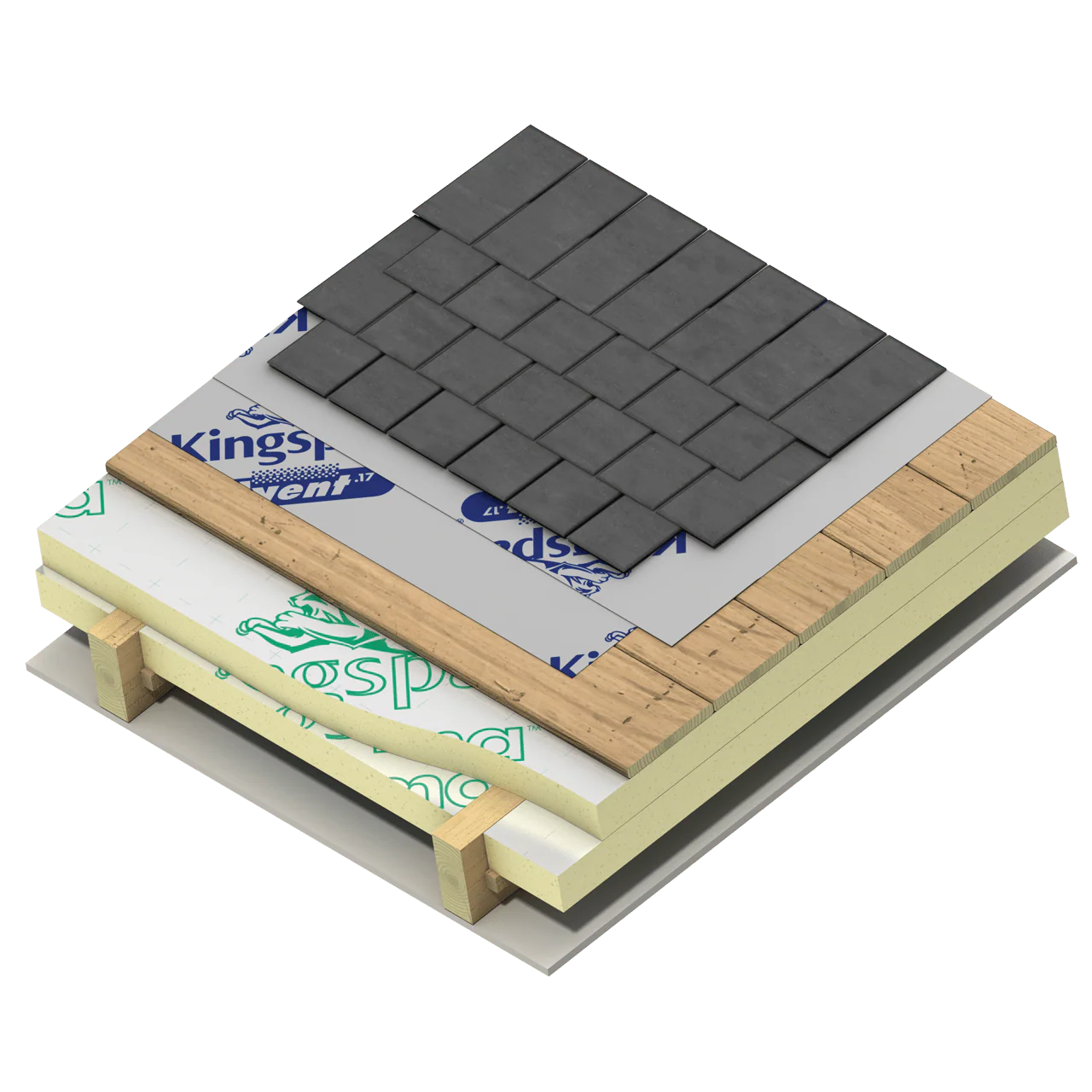

• Strong single layer, or the base of a between-and-over build
• 0.022 W/mK polyisocyanurate (PIR) core
• Low emissivity composite foil on each face
• Unaffected by air infiltration
• New build and re-roofing applications
• For tiled and slated pitched roofs
• Quick to cut and position on site

Good to know

• Resistant to water vapour movement
• 2400 x 1200mm boards covering 2.88m² apiece
• Works in ventilated and unventilated roofs
• Certificate 14/5133 from the BBA covers 20 to 140mm
• Ideally stored inside; if outside, cover and raise off the ground
