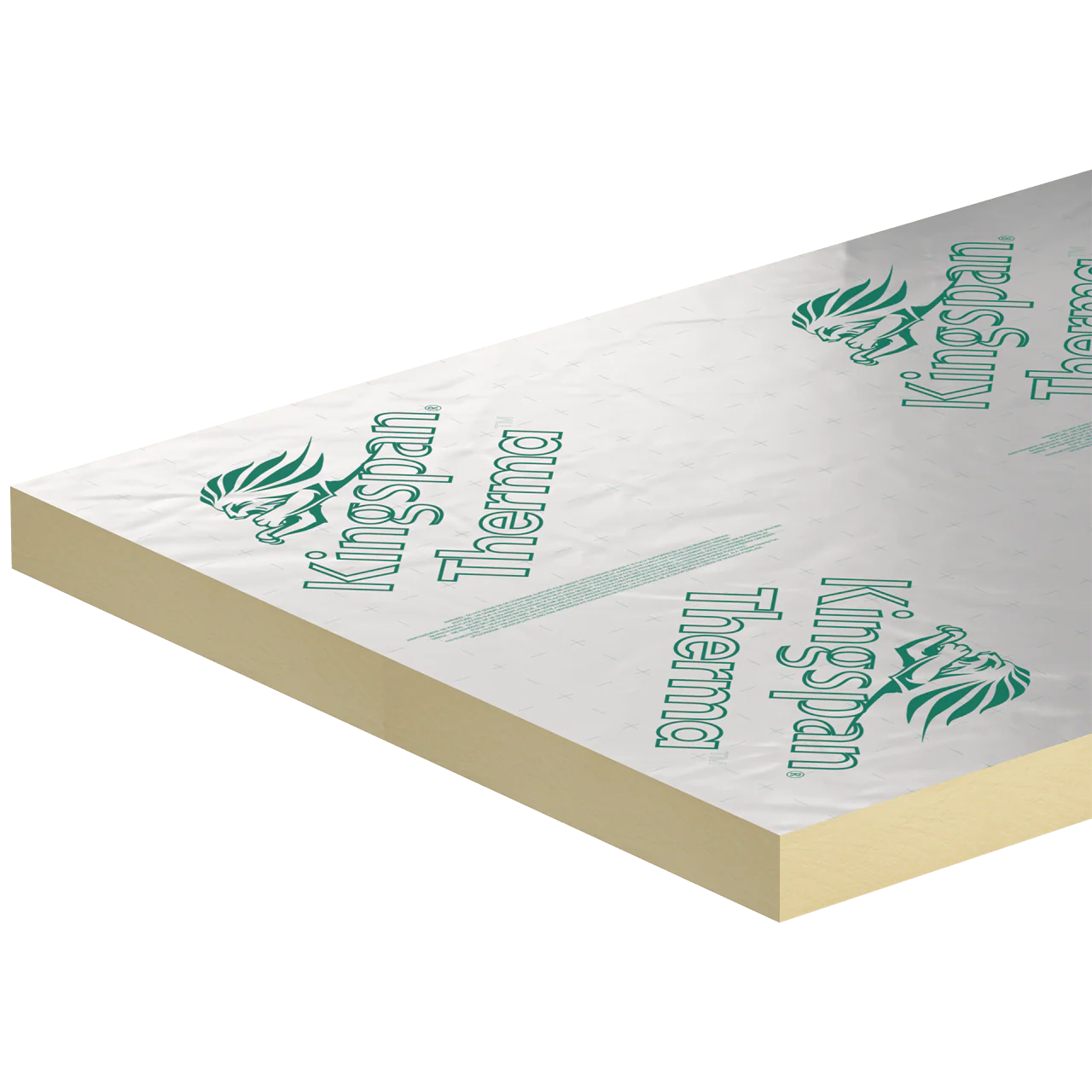

120mm Kingspan TP10 ThermaPitch PIR Insulation Board 2.4m x 1.2m

120mm Kingspan Thermapitch® TP10 answers demanding roof specifications with high single-layer performance. A thermal resistance of 5.45 m²K/W, from a 0.022 W/mK polyisocyanurate (PIR) core, drives roof U-values down towards the levels higher-performance builds call for, whether between deep rafters or over rafters. Low emissivity foil faces both sides. A high-output thickness for low-U-value warm roofs.

Benefits

• Thermal resistance of 5.45 m²K/W
• High single-layer output for low-U-value roofs
• 0.022 W/mK core, low conductivity
• Reflective foil facings on both sides

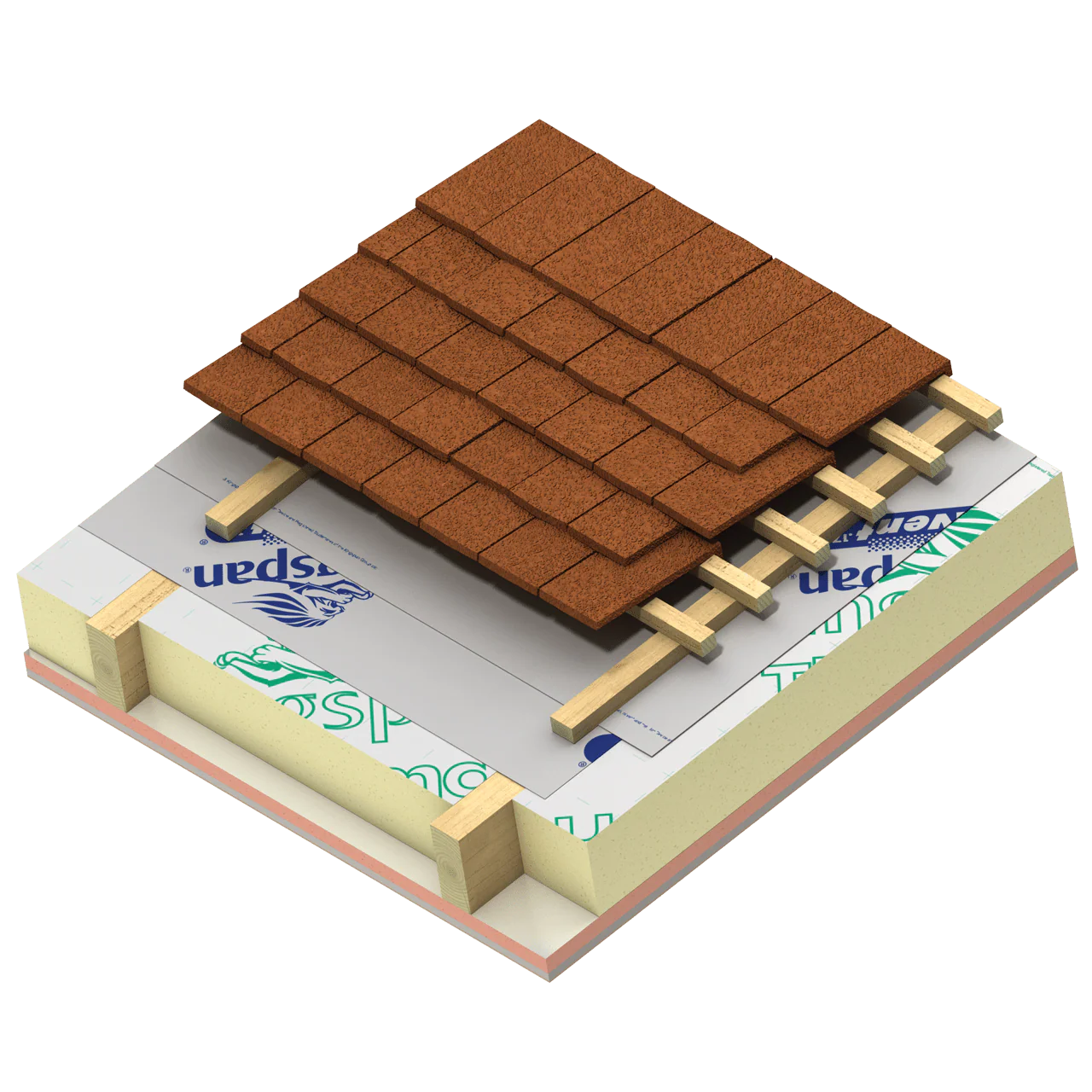

• Fits between deep rafters or over rafters
• Unaffected by air infiltration
• For new build and re-roofing work
• Cuts and handles easily on site

Good to know

• Holds up against water vapour
• 2.88m² coverage, 2400mm x 1200mm boards
• Suited to ventilated and unventilated roofs
• BBA Certificate 14/5133 spans the 20 to 140mm thicknesses
• Stack flat, raised and covered against the weather
