150mm Kingspan TP10 ThermaPitch PIR Insulation Board 2.4m x 1.2m

150mm Kingspan Thermapitch® TP10 is the top standard thickness in the range, giving the highest single-board thermal resistance TP10 offers at 6.80 m²K/W. Its 0.022 W/mK rigid polyisocyanurate (PIR) core reaches the very low roof U-values expected on low-energy and passive-leaning builds without a second layer. Low emissivity foil faces each side. Where maximum thermal performance from a single TP10 board is the aim, this sits at the top of the range.

Benefits

• 6.80 m²K/W thermal resistance, the highest standard TP10 figure
• Reaches very low roof U-values without a second layer
• Conductivity of just 0.022 W/mK
• Low emissivity foil to top and bottom faces
• Unaffected by air infiltration
• New build or refurbishment, either way

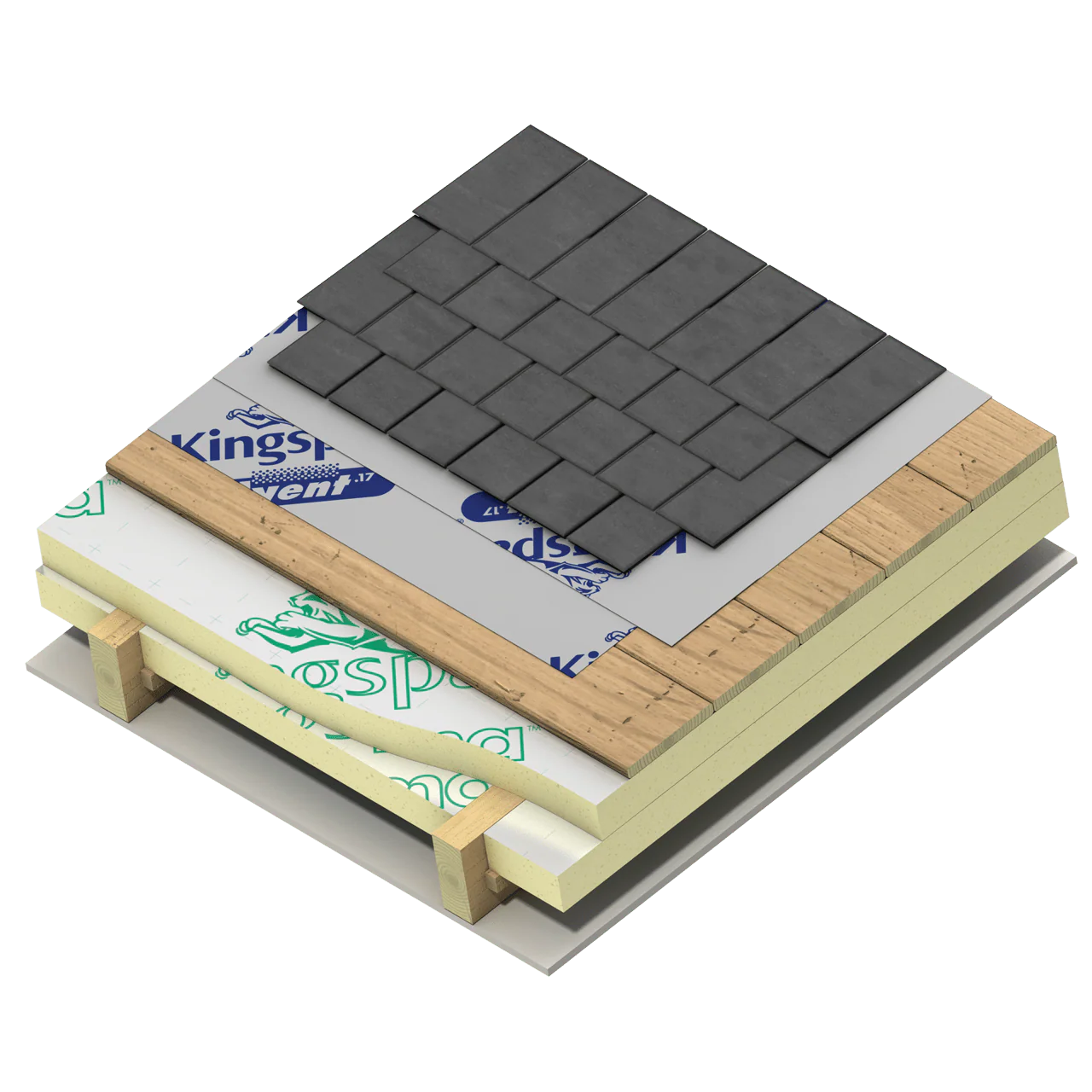

• For tiled and slated pitched roofs
• Light to handle for its thickness

Good to know

• Resistant to the passage of moisture vapour
• 2.88m² per sheet, 2400mm x 1200mm
• Works in ventilated and unventilated roofs
• Certified under NSAI Agrément 03/0196 (25 to 150mm); see note
• Store boards raised off the ground and under cover
