60mm Kingspan TF70 ThermaFloor PIR Insulation Board 2.4m x 1.2m

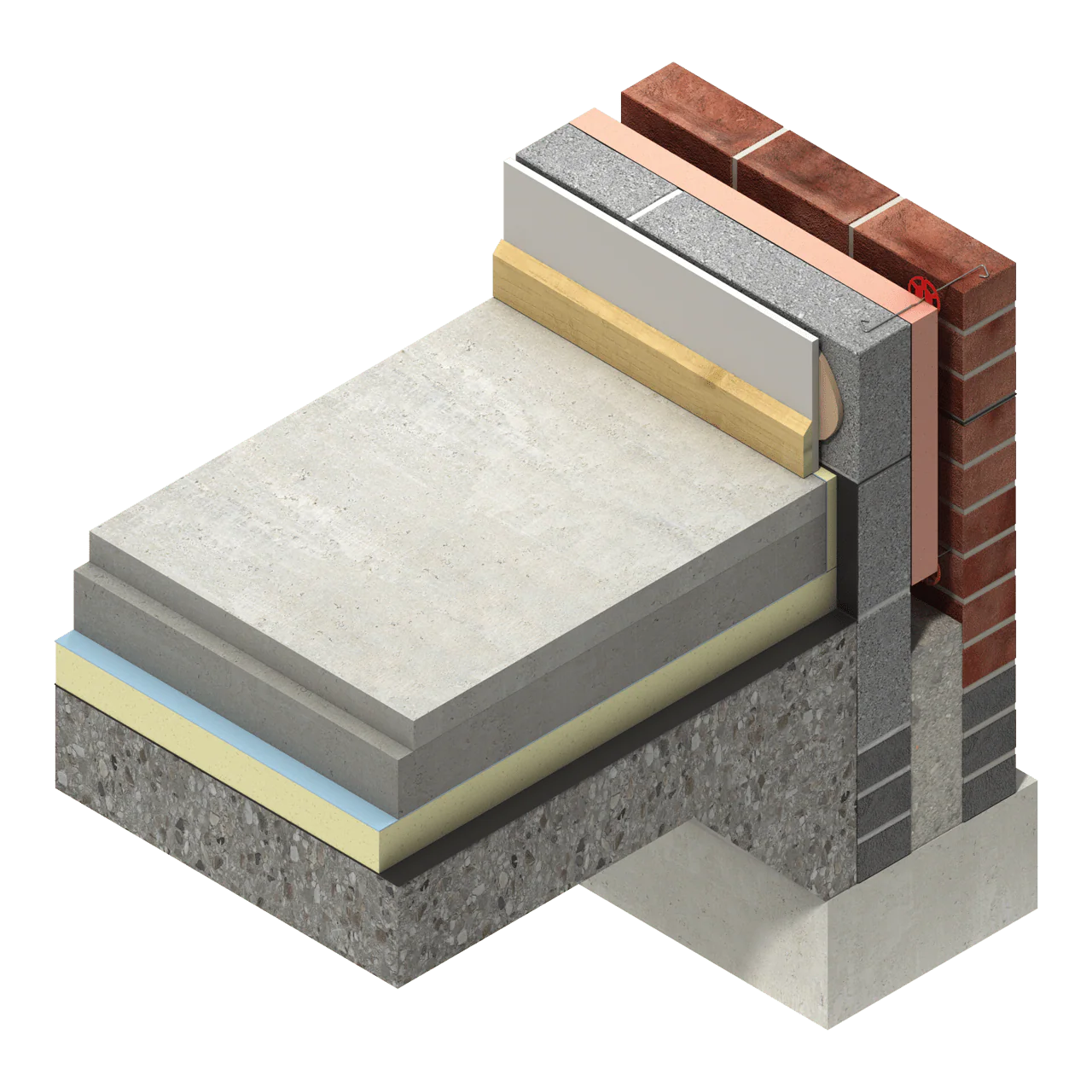

Built as comfortably into suspended timber floors as solid concrete ones, 60mm Kingspan Thermafloor® TF70 is a capable all-rounder. With 2.70 m²K/W of thermal resistance from its 0.022 W/mK polyisocyanurate (PIR) core, it brings lower floor U-values within reach across a spread of perimeter-to-area ratios. The board cuts neatly to sit between joists or lay below a screed, and reflective foil sits on each face. A flexible thickness for new build and renovation floors.

Benefits

• Thermal resistance of 2.70 m²K/W
• Cuts neatly to sit between timber floor joists
• Lambda (λ) value of 0.022 W/mK
• Reflective foil facing top and bottom
• Covers new build and renovation applications
• 120 kPa at 10% compression underfoot
• Handles underfloor heating installations
• Cuts cleanly and handles easily

Good to know

• Good resistance to water vapour
• 2.88m² per board at 2400mm x 1200mm
• Backed by BBA Certificate 14/5133 for 20 to 150mm
• Keep flat and dry, away from the elements
