70mm Kingspan TF70 ThermaFloor PIR Insulation Board 2.4m x 1.2m

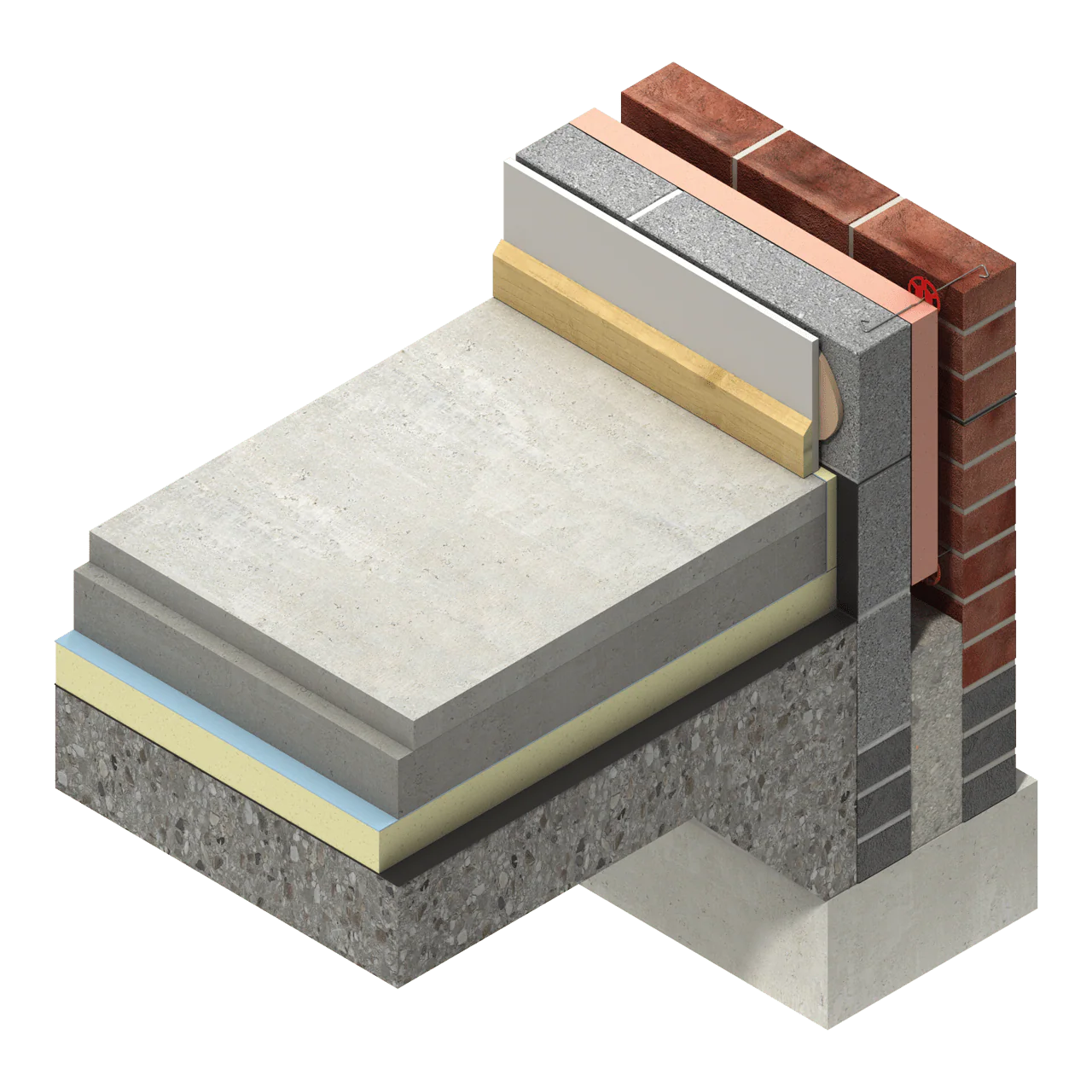

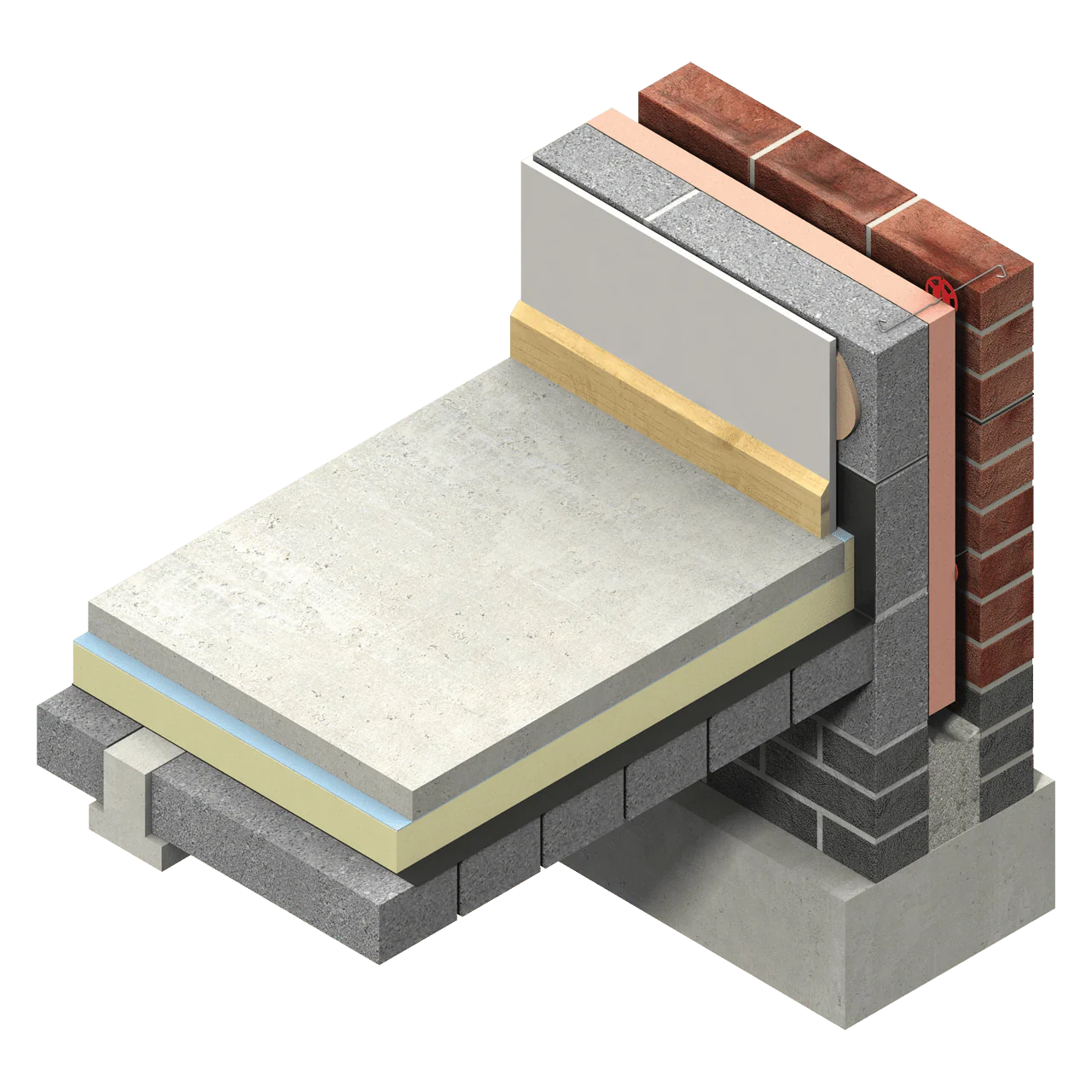

70mm Kingspan ThermafloorĀ® TF70 is a solid-floor field board, at home under a concrete slab or below the screed on an underfloor heating build-up. Its 3.15 mĀ²K/W thermal resistance, from a 0.022 W/mK PIR core, supports the lower U-values many ground floors are held to. Low emissivity foil sits on both faces, and where an underfloor heating system is used, the board's position can be set to suit the construction and heating strategy. A dependable thickness for solid concrete floors.
Benefits
- 3.15 mĀ²K/W thermal resistance
- Lays below the slab or below the screed
- 0.022 W/mK conductivity rating
- Autohesively bonded foil facings on each side
- For new and existing floor constructions
- Declared 120 kPa at 10% compression
- Ready for use with underfloor heating
- Cuts to size with a sharp knife or fine saw
Good to know
- Stands up to water vapour
- Standard 2400mm x 1200mm board, 2.88mĀ² coverage
- Assessed under BBA Certificate 14/5133 (20 to 150mm)
- Protect from weather; store flat and off the ground
